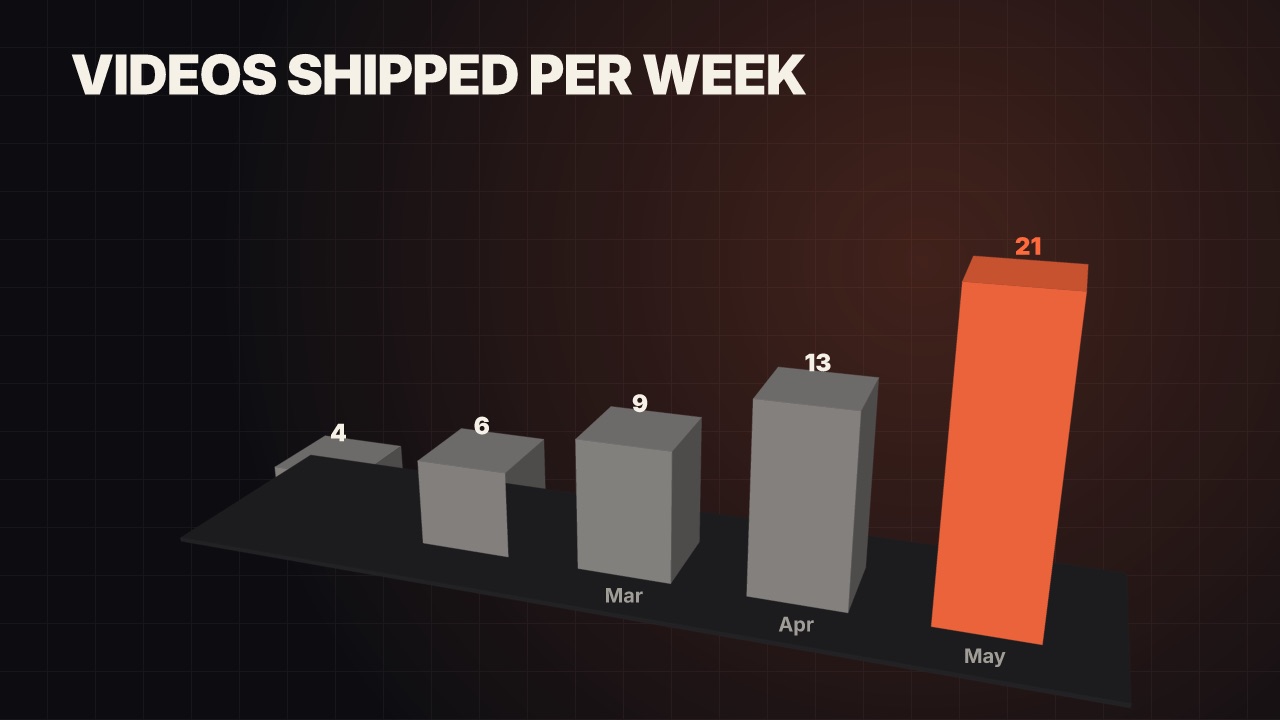

3D bar chart

Bars rise from a floor one after another while the camera orbits; values count up on their tops and the leader takes the accent.

• 3d/bars-3d
• 3D
• chart
• Full frame
• 6 s (3–30 s)
• 3D kit

16:99:161:14:5

Live in your browser

0.00 / 6.00 s

Render it

npx volito render 3d/bars-3d --prop title="Videos shipped per week" --out bars-3d.mov

That writes ProRes 4444. The same item in another shape, brand or format:

volito render 3d/bars-3d --aspect 9:16 --style cobalt --out bars-3d-9x16.mov
volito render 3d/bars-3d --format mp4 --out bars-3d.mp4
volito still 3d/bars-3d --t 3 --out bars-3d.png
volito info 3d/bars-3d     # every prop and part
volito add 3d/bars-3d      # copy its source into ./motion to edit

From Node:

import { findItem, renderVideo } from "volito";

await renderVideo(findItem("3d/bars-3d"), { props: { title: "Videos shipped per week" }, out: "bars-3d.mov" });

Or ask an agent with the MCP server connected: “Render the Volito 3d bar chart (3d/bars-3d) in 9:16, in our brand.”

Props

Set each with --prop name=value, or all at once with --props and a JSON object.

Parts

Each part takes any move, ease or idle: --motion ground.in=pop.

Tags: 3d, chart, bars, data, orbit

More in 3D

3D logo

An extruded wordmark swings in on a spring and settles as a light sweeps across its faces; the tagline rises beneath. Real depth, light and perspective.

3D title

Extruded letters flip up one by one on springs while the camera eases in; the subtitle rises beneath.

3D number

A big extruded number counts up, tilted toward the camera, with a light sweep when it lands and the label beneath.

3D card flip

A card with real thickness tilts in, holds its front, then flips over to its back. Good for before/after, question/answer, myth/fact.

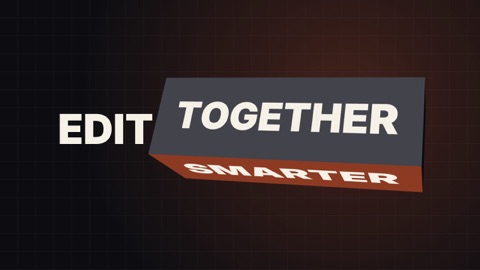

3D word cube

A cube turns a quarter at a time on a spring, each side showing the next word — a kinetic way through a list of 2 to 4 words.

3D globe

A lit globe spins to a country, which lights up in the accent; routes arc in from other countries and a pin names the place.
