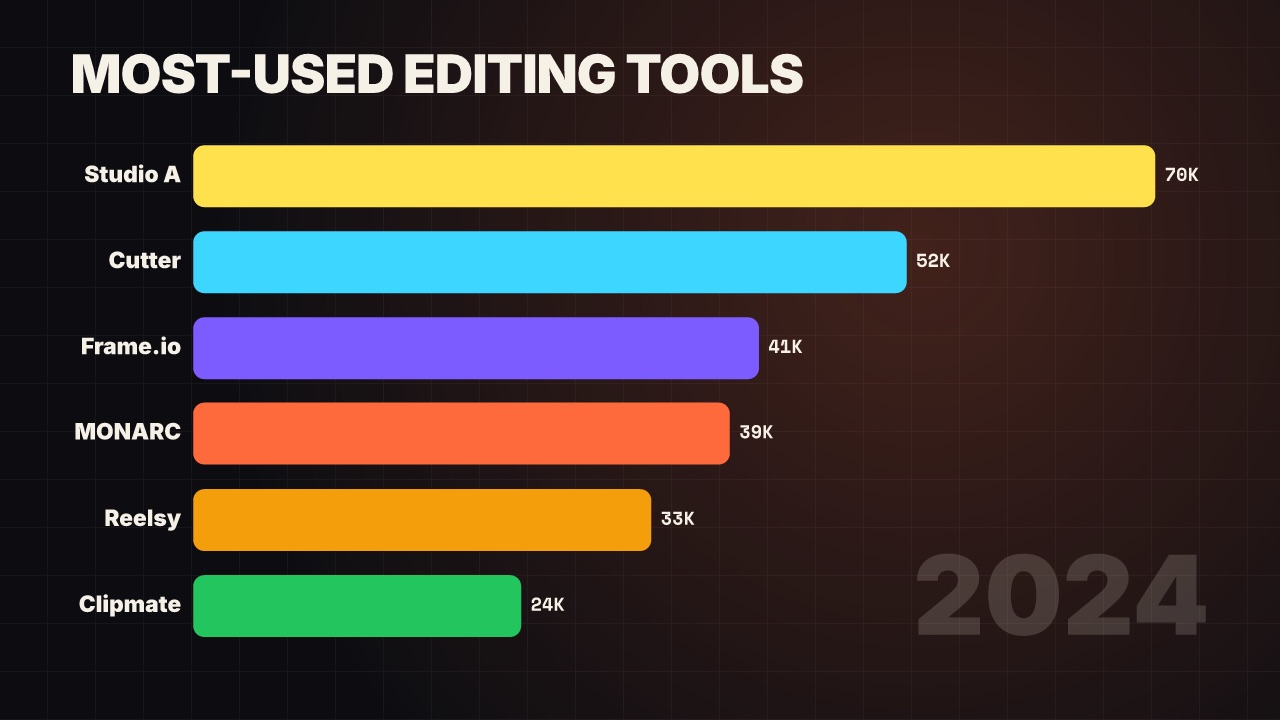

Bar chart race
Ranked bars grow and overtake each other as the periods advance; the axis rescales and the period counts up in the corner.
data/bar-race- Data
- chart
- Full frame
- 8 s (4–60 s)
Render it
npx volito render data/bar-race --prop title="Most-used editing tools" --prop suffix="K" --out bar-race.movThat writes ProRes 4444. The same item in another shape, brand or format:
volito render data/bar-race --aspect 9:16 --style cobalt --out bar-race-9x16.mov
volito render data/bar-race --format mp4 --out bar-race.mp4
volito still data/bar-race --t 4 --out bar-race.png
volito info data/bar-race # every prop and part
volito add data/bar-race # copy its source into ./motion to editFrom Node:
import { findItem, renderVideo } from "volito";
await renderVideo(findItem("data/bar-race"), { props: { title: "Most-used editing tools", suffix: "K" }, out: "bar-race.mov" });Or ask an agent with the MCP server connected: “Render the Volito bar chart race (data/bar-race) in 9:16, in our brand.”
Props
Set each with --prop name=value, or all at once with --props and a JSON object.
| Prop | Type | Default | Takes |
|---|---|---|---|
title | text | Most-used editing tools | ≤ 50 chars |
periods | list | 2022; 2023; 2024; 2025; 2026 | — |
rowsRows (Name: v1, v2, …) | list | {"label":"MONARC","values":"4, 14, 38, 72, 118"}; {"label":"Studio A","values":"60, 66, 70, 71, 72"}; {"label":"Cutter","values":"40, 48, 52, 50, 46"}; {"label":"Frame.io","values":"22, 30, 41, 47, 51"}; {"label":"Clipmate","values":"35, 30, 24, 20, 18"}; {"label":"Reelsy","values":"8, 20, 33, 44, 49"} | — |
showBars shown | number | 6 | 3 – 10 |
prefixBefore numbers | text | — | ≤ 3 chars |
suffixAfter numbers | text | K | ≤ 6 chars |
decimals | number | 0 | 0 – 3 |
Parts
Each part takes any move, ease or idle: --motion ground.in=pop.
| Part | What it is |
|---|---|
ground | the ground |
title | the heading |
bars | the bars |
period | the period in the corner |
