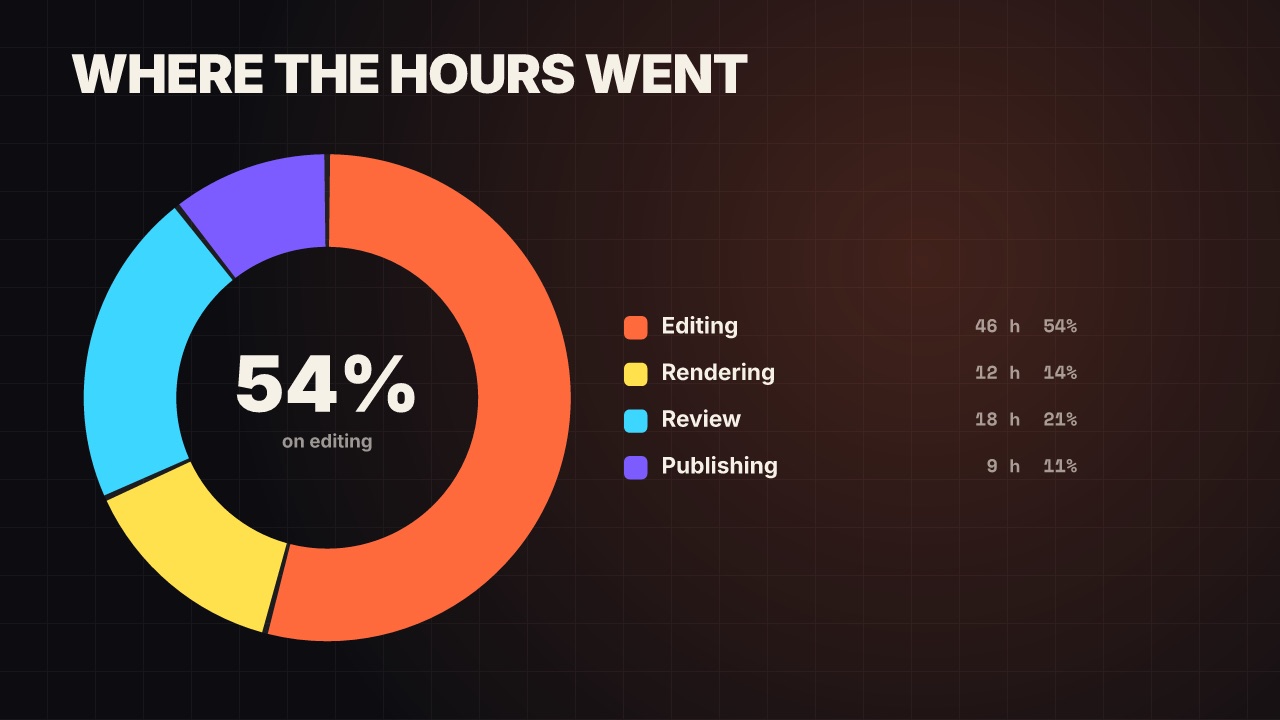

Donut chart
Segments sweep round a ring one after another, the centre counts up to the total (or the first share), and a legend lists each part.
data/donut- Data
- chart
- Full frame
- 6 s (3–30 s)
Render it
npx volito render data/donut --prop title="Where the hours went" --prop centerLabel="on editing" --out donut.movThat writes ProRes 4444. The same item in another shape, brand or format:
volito render data/donut --aspect 9:16 --style cobalt --out donut-9x16.mov
volito render data/donut --format mp4 --out donut.mp4
volito still data/donut --t 3 --out donut.png
volito info data/donut # every prop and part
volito add data/donut # copy its source into ./motion to editFrom Node:
import { findItem, renderVideo } from "volito";
await renderVideo(findItem("data/donut"), { props: { title: "Where the hours went", centerLabel: "on editing" }, out: "donut.mov" });Or ask an agent with the MCP server connected: “Render the Volito donut chart (data/donut) in 9:16, in our brand.”
Props
Set each with --prop name=value, or all at once with --props and a JSON object.
| Prop | Type | Default | Takes |
|---|---|---|---|
title | text | Where the hours went | ≤ 50 chars |
rowsRows (Label: value) | list | {"label":"Editing","value":46}; {"label":"Rendering","value":12}; {"label":"Review","value":18}; {"label":"Publishing","value":9} | — |
centerCentre shows | choice | first share | total | first share |
centerLabelCentre label | text | on editing | ≤ 20 chars |
prefixBefore numbers | text | — | ≤ 3 chars |
suffixAfter numbers | text | h | ≤ 6 chars |
decimals | number | 0 | 0 – 3 |
Parts
Each part takes any move, ease or idle: --motion ground.in=pop.
| Part | What it is |
|---|---|
ground | the ground |
title | the heading |
ring | the segments |
center | the number in the middle |
legend | the legend |
