Line chart

A line draws on through its points over a soft area, each point popping as the line reaches it, the last value called out, against an optional target.

  • data/line-chart
  • Data
  • chart
  • Full frame
  • 6 s (3–30 s)
Live in your browser

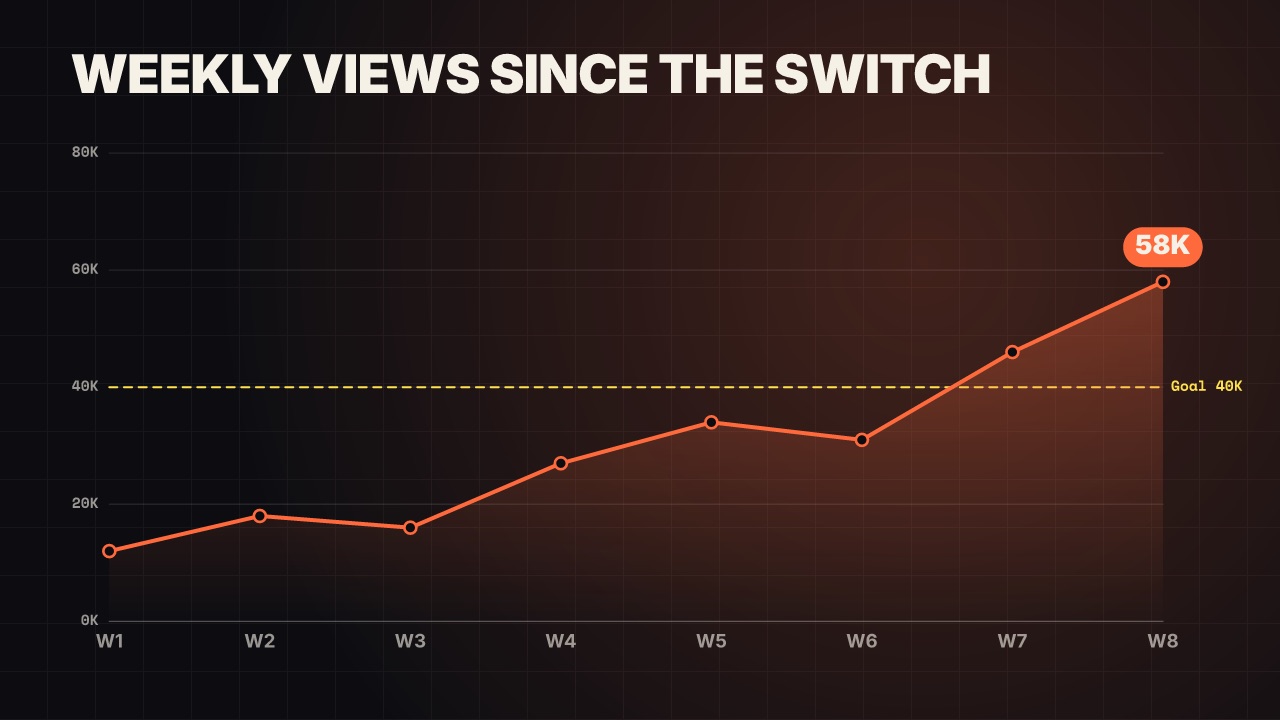

Line chart at 16:9
0.00 / 6.00 s
Playing live with volito/browser, the engine a render uses. Each tab lays the item out again for that shape, not a crop.

Render it

npx volito render data/line-chart --prop title="Weekly views since the switch" --prop suffix="K" --out line-chart.mov

That writes ProRes 4444. The same item in another shape, brand or format:

volito render data/line-chart --aspect 9:16 --style cobalt --out line-chart-9x16.mov
volito render data/line-chart --format mp4 --out line-chart.mp4
volito still data/line-chart --t 3 --out line-chart.png
volito info data/line-chart     # every prop and part
volito add data/line-chart      # copy its source into ./motion to edit

From Node:

import { findItem, renderVideo } from "volito";

await renderVideo(findItem("data/line-chart"), { props: { title: "Weekly views since the switch", suffix: "K" }, out: "line-chart.mov" });

Or ask an agent with the MCP server connected: “Render the Volito line chart (data/line-chart) in 9:16, in our brand.”

Props

Set each with --prop name=value, or all at once with --props and a JSON object.

PropTypeDefaultTakes
titletextWeekly views since the switch≤ 56 chars
rows
Rows (Label: value)
list{"label":"W1","value":12}; {"label":"W2","value":18}; {"label":"W3","value":16}; {"label":"W4","value":27}; {"label":"W5","value":34}; {"label":"W6","value":31}; {"label":"W7","value":46}; {"label":"W8","value":58}—
prefix
Before numbers
text—≤ 3 chars
suffix
After numbers
textK≤ 6 chars
decimalsnumber00 – 3
target
Target line (0 = none)
number400 – 1000000000000
targetLabel
Target label
textGoal≤ 16 chars

Parts

Each part takes any move, ease or idle: --motion ground.in=pop.

PartWhat it is
groundthe ground
titlethe heading
gridthe gridlines and axis labels
areathe area under the line
linethe line
dotsthe points
labelthe last value's callout
targetthe target line

Tags: chart, line, trend, growth, data
