Flight route

A map frames two places; a route arcs from one to the other along the great circle while a plane flies it, and both ends are pinned and named.

data/flight
Data
chart
Full frame
6 s (3–30 s)
World maps

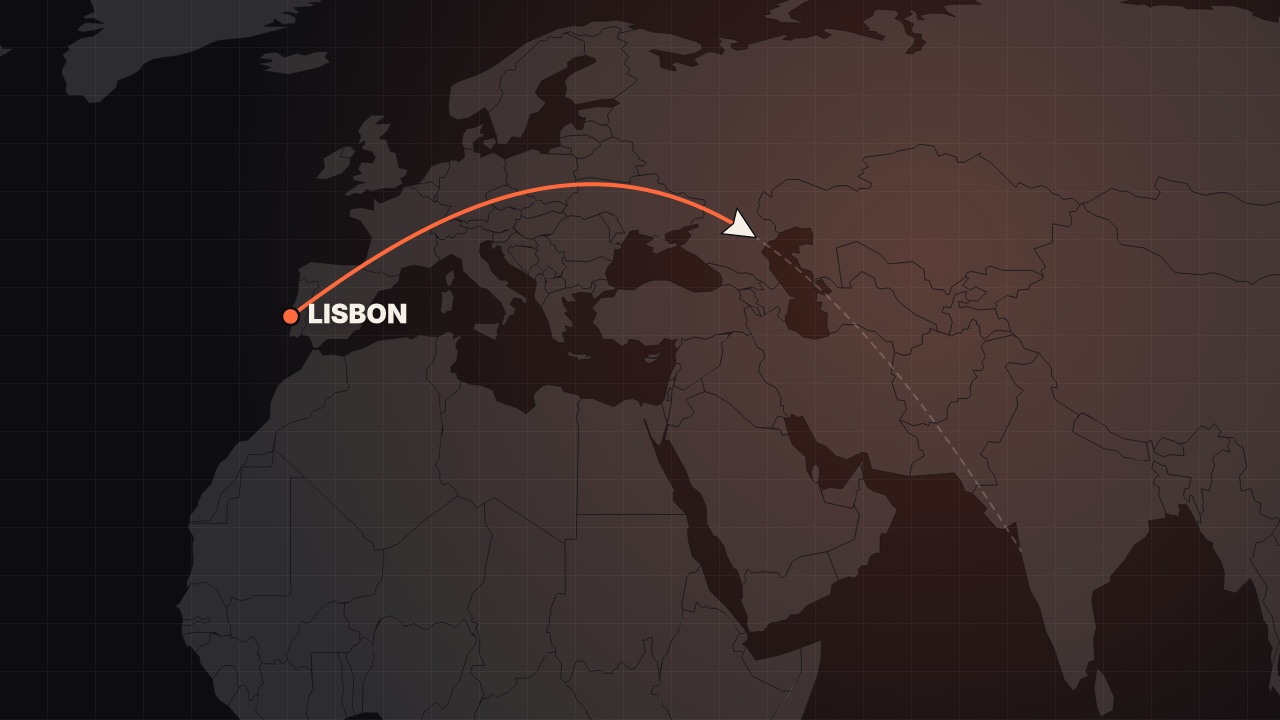

Flight route at 16:9 — Playing live with volito/browser, the engine a render uses. Each tab lays the item out again for that shape, not a crop.

Render it

npx volito render data/flight --prop from="Lisbon" --prop fromAt="38.72, -9.14" --out flight.mov

That writes ProRes 4444. The same item in another shape, brand or format:

volito render data/flight --aspect 9:16 --style cobalt --out flight-9x16.mov
volito render data/flight --format mp4 --out flight.mp4
volito still data/flight --t 3 --out flight.png
volito info data/flight     # every prop and part
volito add data/flight      # copy its source into ./motion to edit

From Node:

import { findItem, renderVideo } from "volito";

await renderVideo(findItem("data/flight"), { props: { from: "Lisbon", fromAt: "38.72, -9.14" }, out: "flight.mov" });

Or ask an agent with the MCP server connected: “Render the Volito flight route (data/flight) in 9:16, in our brand.”

Props

Set each with --prop name=value, or all at once with --props and a JSON object.

Prop	Type	Default	Takes
`from` From (name)	text	Lisbon	≤ 24 chars
`fromAt` From (lat, lon or country)	text	38.72, -9.14	≤ 32 chars
`to` To (name)	text	Mumbai	≤ 24 chars
`toAt` To (lat, lon or country)	text	19.08, 72.88	≤ 32 chars
`note`	text	8,154 km · 9 h 40 m	≤ 32 chars

Parts

Each part takes any move, ease or idle: --motion ground.in=pop.

Part	What it is
`ground`	the ground
`map`	the map
`route`	the route
`plane`	the plane
`pins`	the two pins and names
`note`	the note

Tags: map, travel, route, flight, geo

Flight route

Render it

Props

Parts

More in Data

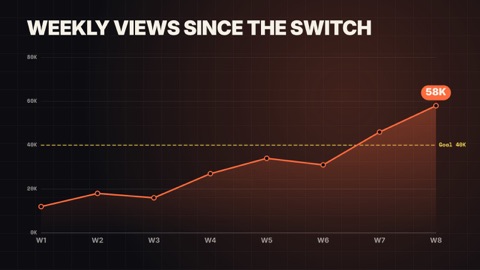

Line chart

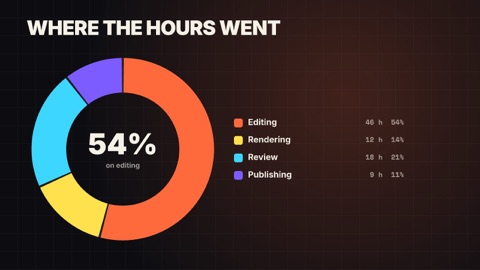

Donut chart

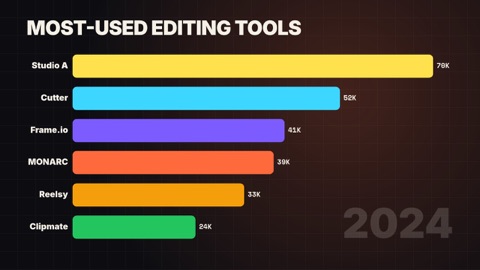

Bar chart race

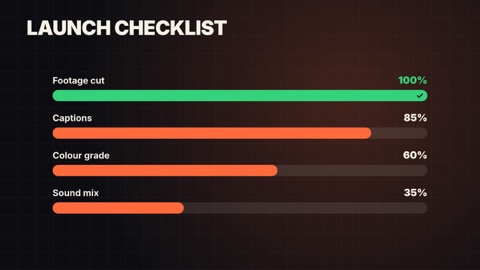

Goal meters

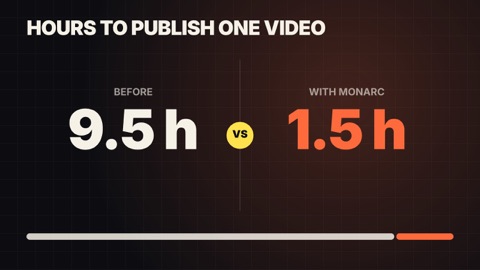

Versus

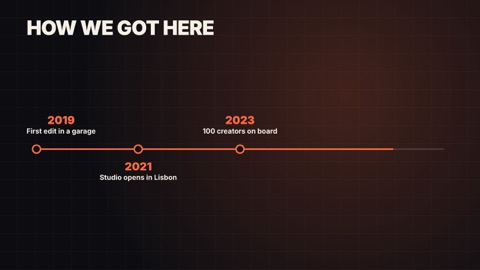

Timeline
